PMBA 可控气氛等温淬火炉

更新：2018/9/27 15:23:11 点击：

品牌：
型号：

产品介绍

PMBA系列等温淬火箱式炉
Batch Austempering Quench Furnace

宝华威PMBA系列箱式等温淬火炉，包含炉顶搅拌风扇，辐射管，密封前室，过渡室，加热室和等温淬火槽组成，炉子设计为用于中性淬火，等温淬火，渗碳，正火，退火和其它热处理工艺用于热处理过程中并需要在加热，保温，淬火过程在控制气氛下的专用热处理设备。设计最大有效最大可装载毛重5000kgs，包括工装在内。正常操作温度设计在787C-930C，其最高操作温度为950C。

The PMBA series batch austempering quench furnace is a batch type unit equipped with recirculating roof fans, radiant tubes, intermediate purge chamber, enclosed vestibule and integral batch quench tank. The furnace is designed for neutral hardening, austempering and other heat treating processes where a controlled environment is required during the heating and quenching portions of the cycle. Measurable water is adding to the quench tank to enhance quench severity. The batch austempering quench furnace is designed with a normal operating temperature range of 790-927℃ with a maximum temperature up to 950℃. Loading capacity varieties differ from each model from 1500Kg to a max of 5000Kg gross loads.

宝华威公司研制的多用途箱式等温淬火炉系统由多用炉、清洗机、回火炉、自动装卸料车、上卸料平台等组成一套完整的热处理生产线；
The standard austempering production line would be consisting of Batch Heat/Quench Furnace, Pre-heating furnace, Washing System, Tempering Furnace, Automatic Loading/Unloading Cart, Loading/Unloading Platforms etc.

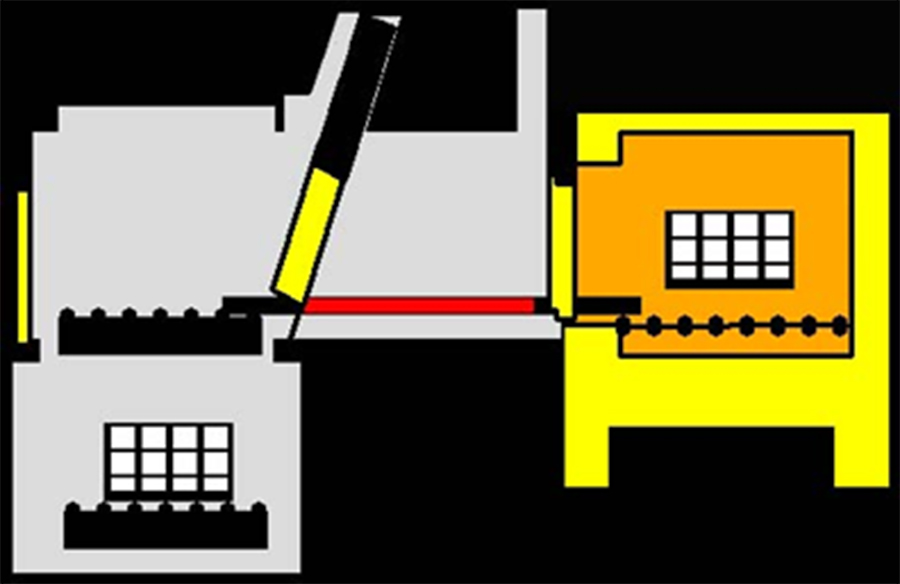

前室-过渡室-加热室结构设计
Three chamber design, Vestibule-Intermediate-Rear chamber design
盐槽快速风冷冷却系统
Quench tank quick air cooling system
双氧探头控制系统
Two-probe carbon control
CQI-9标准
CQI-9 standard compliance
西门子PLC控制系统
Siemens PLC logic control
进口品牌温控仪表
Reliable temp controllers
进口品牌气氛控制系统
Reliable atmosphere control system
清洗液高中低浓度分段清洗
Washing solution independent density control, high-medium-low density washing process separately.
燃气或电加热可选式熔盐槽，配高温盐泵
Gas or Electrical heated salt melting tank with high temp pump.
高效盐回收装置，多层抽屉式设计
High efficiency salt recovery unit, multi-layer drawer type salt collecting design.
